Section 02

Assignment Information

Appendix B-1, page 87

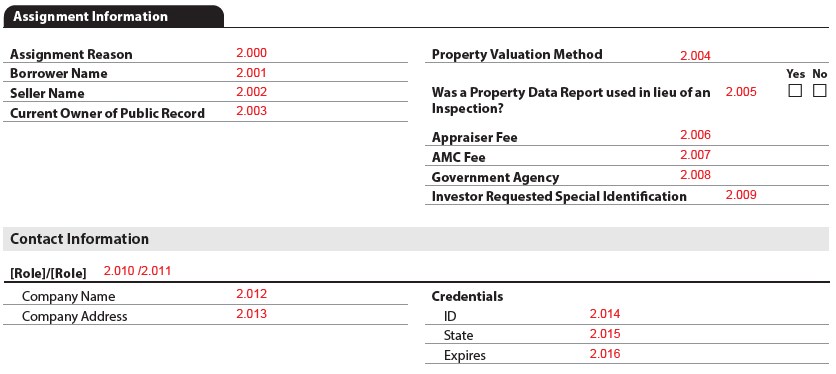

The Assignment Information section provides information about the entities involved in the appraisal, and work completed by the appraiser and other parties. The section provides space for commentary and exhibits.

Table

The Assignment Information section provides information about the entities involved in the appraisal, and work completed by the appraiser and other parties. This section provides space for additional commentary and exhibits.

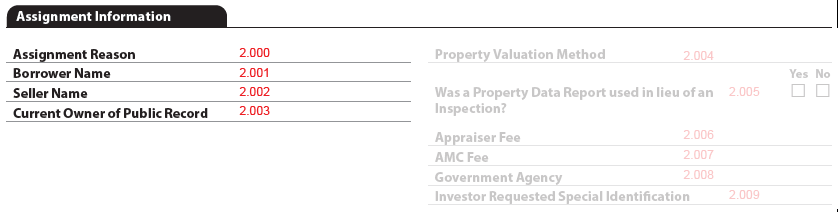

Graphical user interface, text, application

Assignment Reason#

Assignment Information: General Information - Assignment Reason

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
2.000 Assignment Reason 1000.0034 ValuationAssignmentType Always displays

Borrower, Seller, and Current Owner#

Borrowers, sellers, and current owners may be individuals or legal entities.

Assignment Information: General Information - Borrower, Seller, and Current Owner

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
Borrower Name When borrower is not provided, do not display report label.
2.001 Borrower Name 1000.0103 PartyRoleType Display when PartyRoleType = "Borrower" and is an individual
1000.0101 FirstName Display when the borrower is an individual
1000.0170 MiddleName Display when provided when the borrower is an individual
1000.0102 LastName Display when the borrower is an individual
1000.0171 SuffixName Display when provided when the borrower is an individual
1000.0105 PartyRoleType Display when PartyRoleType = "Borrower" and is a legal entity
1000.0104 FullName Display when the borrower is a legal entity
Seller Name When seller is not provided, do not display report label.
2.002 Seller Name 1000.0021 PartyRoleType Display when PartyRoleType = "PropertySeller" and is an individual
1000.0018 FirstName Display when the seller is an individual
1000.0172 MiddleName Display when provided when the seller is an individual
1000.0019 LastName Display when the seller is an individual
1000.0173 SuffixName Display when provided when the seller is an individual
1000.0116 PartyRoleType Display when PartyRoleType = "PropertySeller" and is a legal entity
1000.0020 FullName Display when the seller is a legal entity
Current Owner of Public Record#

There must be at least one instance of Current Owner of Public Record - PartyRoleType = "PropertyOwner".

The XML formation and applicable rows in the UAD Specification will vary depending on whether the Current Owner of Public Record:

A. Matches the Borrower Name, such as for some refinance transactions, or B. Matches the Seller Name, or C. Does not match the Borrower and/or Seller Name

For A and B, the vendor should send multiple ROLEs for the PARTY instead of repeating the PropertyOwner instance of PARTY with the exact same information. Reference the PARTY Element and ROLE Element sections for more information.

Assignment Information: General Information - Current Owner of Public Record

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
2.003 Current Owner of Public Record 1000.0182 PartyRoleType For Case A when the borrower/property owner is an individual, populate with "PropertyOwner"
− Redisplay the Borrower Name (2.001) in Current Owner of Public Record (2.003).
1000.0183 PartyRoleType For Case A when the borrower/property owner is a legal entity, populate with "PropertyOwner"
− Redisplay the Borrower Name (2.001) in Current Owner of Public Record (2.003).
1000.0184 PartyRoleType For Case B when the seller/property owner is an individual (person), populate with "PropertyOwner"
− Redisplay the Seller Name (2.002) in Current Owner of Public Record (2.003).
1000.0185 PartyRoleType For Case B when the seller/property owner is an individual person, populate with "PropertyOwner"
− Redisplay the Seller Name (2.002) in Current Owner of Public Record (2.003).
1000.0025 PartyRoleType For Case C when the property owner is an individual (person), populate with "PropertyOwner" and include the following:
1000.0022 FirstName Display when the property owner is an individual
1000.0174 MiddleName Display when provided when the property owner is an individual
1000.0023 LastName Display when the property owner is an individual
1000.0175 SuffixName Display when provided when the property owner is an individual
1000.0117 PartyRoleType For Case C when the property owner is a legal entity, populate with "PropertyOwner" and include the following:
1000.0024 FullName Display when the property owner is a legal entity

Property Valuation Method and Property Data Report#

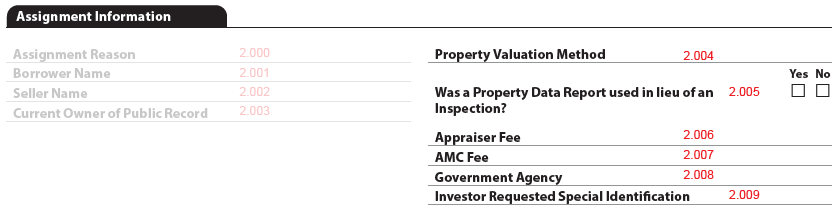

URAR form snippet

Assignment Information: General Information - Property Valuation Method and Property Data Report

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
2.004 Property Valuation Method 1000.0158 PropertyValuationMethodType Always displays
2.005 Was a Property Data Report used in lieu of an Inspection? 1000.0043 Property Data Report Indicator Checkbox always displays
− When "true", triggers the Property Data Report subsection (2.055 - 2.063)

Appraiser Fee and AMC Fee#

Appraiser Fee and AMC Fee, if provided, are each a type-value pair in the XML that is included in the corresponding instance of PARTY:

  • Appraiser Fee, if provided, is included in the instance with PartyRoleType (UID: 2400.0056, FID: Not on report) = "Appraiser", as described in the Appraiser and Supervisory Appraiser subsection in this chapter (2.017-2.131).
  • AMC Fee, if provided, is included in the instance with the AMC, as described in the [Role]/[Role] subsection in this chapter (2.032-2.046).
    • PartyRoleType (UID: 2400.0300, FID: 2.010) = "ManagementCompany" if the AMC is not the client.
    • PartyRoleType (UID: 2400.0017, FID: 2.011) = "ManagementCompany" if the AMC is the client.

Assignment Information: General Information

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
2.006 Appraiser Fee 1000.0010 FeeType Display when FeeType = "AppraisalFee" AND Exists
If not provided, do not display report label.
1000.0011 ProvidedServiceActualCostAmount
2.007 AMC Fee 1000.0152 FeeType Display when FeeType = "AppraisalManagementCompanyFee" AND Exists
If not provided, do not display report label.
1000.0153 ProvidedServiceActualCostAmount
1000.0004 FeeType Display when FeeType = "AppraisalManagementCompanyFee" AND PartyRoleType = "Client" AND Exists.
If not provided, do not display report label.
1000.0005 ProvidedServiceActualCostAmount

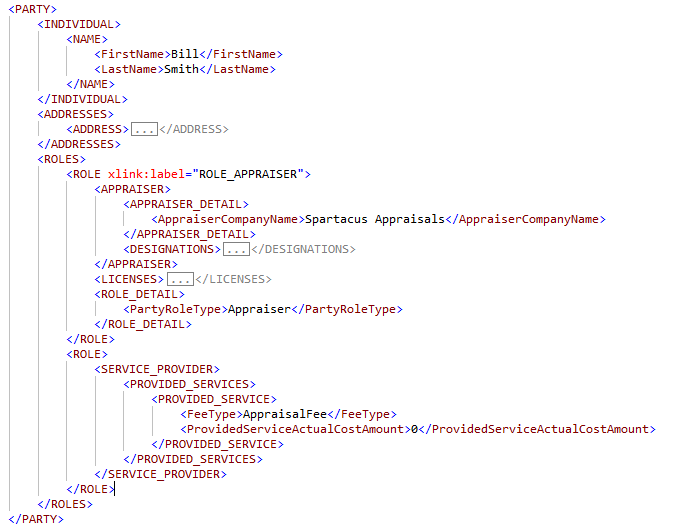

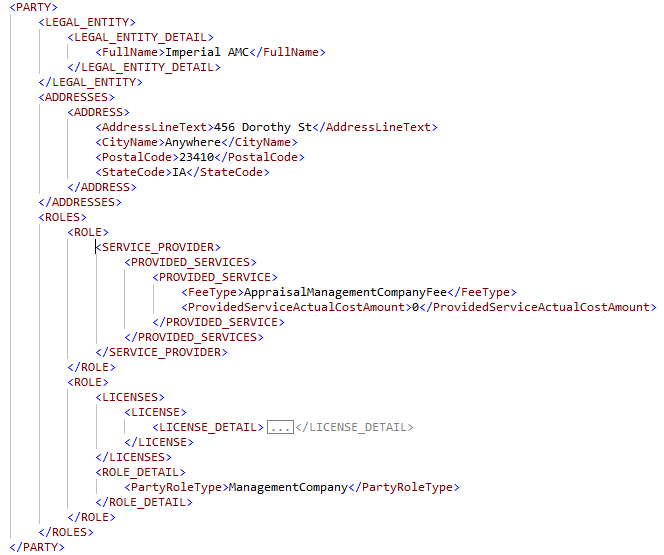

Example of Appraiser Fee and AMC Fee

Figure 2 - 1

URAR form snippet

URAR form snippet

URAR form snippet

Government Agency Appraisals and Special Identification#

Assignment Information: General Information - Government Agency Appraisals and Special Identification

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
2.008 Government Agency 1000.0028 GovernmentAgencyAppraisalIndicator When "false", do not display report label.
1000.0029 GovernmentAgencyAppraisalType Required when GovernmentAgencyAppraisalIndicator = "true"
2.009 Investor Requested Special Identification 1000.0038 InvestorRequestedIdentificationCode When not provided, do not display report label.

Contact Information#

The Contact Information subsection includes information about the people and/or companies ("contacts") that are pertinent to the appraisal, including:

  • Clients, including lenders, AMCs, and other parties ([Role]/[Role] subsection)
  • Appraiser and supervisory appraiser, if applicable (Appraiser/Supervisory Appraiser subsection)

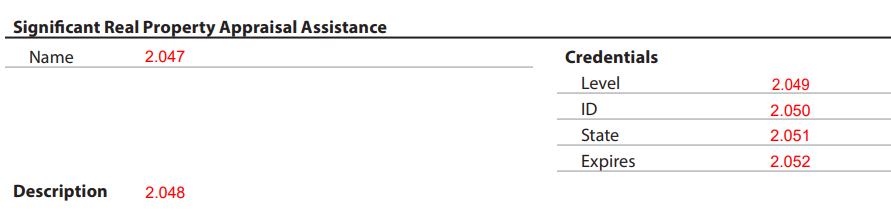

  • Person(s) providing significant real property appraisal assistance (Significant Real Property Appraisal Assistance subsection)

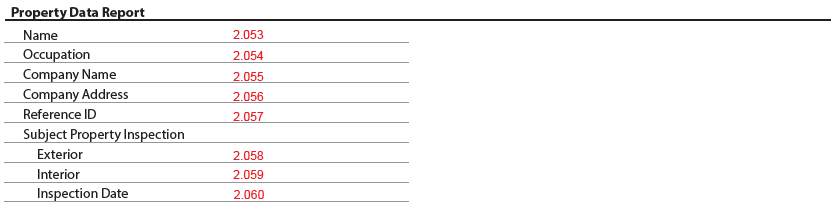

  • Entity providing a property data report (Property Data Report subsection)

Every contact has one or more roles (PartyRoleType). PartyRoleType determines which of the subsections the contact appears in.

[Role]/[Role]#

This portion of Contact Information shows details about the lender, client, and/or AMC. It repeats for each lender, client, and/or AMC on the report (each instance of PARTY).

A PARTY can have more than one PartyRoleType, which impacts the report display and the XML creation. This table provides some typical examples.

[Role]/[Role] - Examples

Example Occurrences of PartyRoleType in XML How to Display Subheading (2.010/2.011) Reference in This Chapter
The lender is the client − PartyRoleType (UID: 2400.0018, FID: 2.010) = "Client"
− PartyRoleType (UID: 2400.0017, FID: 2.011) = "Lender"
Client/Lender Clients
The AMC is the client − PartyRoleType (UID: 2400.0018, FID: 2.010 = "Client"
− PartyRoleType (UID: 2400.0017, FID: 2.011) = "ManagementCompany"
Client/Appraisal Management Company Clients
Another entity - Attorney − PartyRoleType (UID: 2400.0018, FID: 2.010) = "Client"
− PartyRoleType (UID: 2400.0017, FID: 2.011) = "Attorney"
Client/Attorney Clients
Another entity - Investor − PartyRoleType (UID: 2400.0018, FID: 2.010) = "Client"
− PartyRoleType (UID: 2400.0017, FID: 2.011) = "Investor"
Client/Investor Clients
Another entity - Client − PartyRoleType (UID: 2400.0018, FID: 2.010) = "Client"
− PartyRoleType (UID: 2400.0017, FID: 2.011) = "Other" PartyRoleTypeOtherDescription (UID: 2400.0077, FID: 2.011)
Client/[Other Description] Clients
The AMC is not the client − PartyRoleType (FID: 2400.0300, UID: 2.010) = "ManagementCompany" Appraisal Management Company When Lender/AMC is not the Client

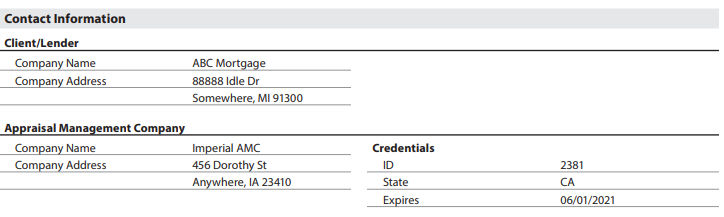

Example showing Client/Lender and AMC

In this example, credentials (licensing information) are reported for the AMC. (Figure 2 - 2)

Figure 2 - 2

Graphical user interface, text, application, email

Although the information is similar for clients and non-clients, the data points are different and clients require an additional PartyRoleType, therefore they are split out in this document.

Client#

Company name and address is reported for clients, and credentials (license information) are reported for AMCs when applicable (when required by the jurisdiction in which the subject property is located).

  • Clients must have an additional PartyRoleType (UID: 2400.0017, FID: 2.011) to identify the type of client.

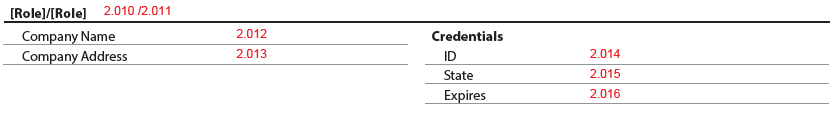

Graphical user interface

Assignment Information: Contact Information - [Role]/[Role] - Client

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
When PartyRoleType (UID: 2400.0018, FID: 2.010) = "Client" and PartyRoleType (UID: 2400.0017, FID: 2.011) is present …
2.012 Company Name 2400.0013 FullName Always displays
2.013 Company Address 2400.0001 AddressLineText Always displays
2400.0002 CityName Always displays
2400.0004 StateCode Always displays
2400.0003 PostalCode Always displays
Credentials If LicenseIdentifier, LicenseIssuingAuthorityStateCode, and LicenseExpirationDate are not provided, do not display report label.
2.014 ID 2400.0015 LicenseIdentifier Display when provided for PartyRoleType (UID: 2400.0017, FID: 2.011) = "ManagementCompany". If not provided, do not display report label.
2.015 State 2400.0016 LicenseIssuingAuthorityStateCode Display when provided for PartyRoleType (UID: 2400.0017, FID: 2.011) = "ManagementCompany". If not provided, do not display report label.
2.016 Expires 2400.0014 LicenseExpirationDate Display when provided for PartyRoleType (UID: 2400.0017, FID: 2.011) = "ManagementCompany". If not provided, do not display report label.

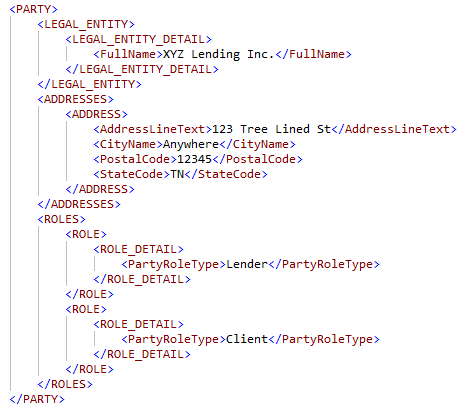

When a given PARTY plays multiple roles (e.g., Lender is also the Client), then both roles must be identified in the same instance of the PARTY container via multiple occurrences of the ROLE container, and the specific role played by the party is captured in ROLE/ROLE_DETAIL/PartyRoleType.

  • When Lender is also the Client, the instance of the PARTY container representing Lender must have two instances of the ROLE container. One of the instances must identify ROLE/ROLE_DETAIL/PartyRoleType as "Lender", the second instance must identify ROLE/ROLE_DETAIL/PartyRoleType as "Client". Similarly, when AMC is the Client, or Attorney is the Client, the PARTY container must include two instances of ROLE container. The snippet provided below depicts a PARTY container where Lender is also the Client.

Timeline

When Lender/AMC is Not the Client#

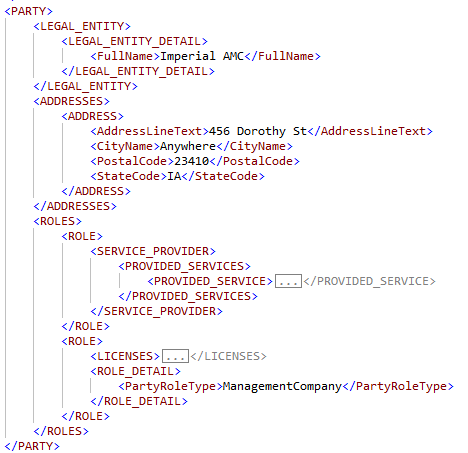

  • Deliver the appraisal management company information if an appraisal management company exists but is not the client. (Figure 2 - 3)

Figure 2 - 3

Timeline

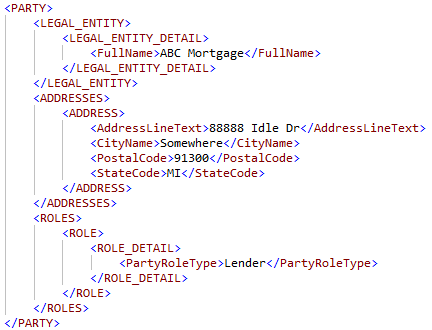

  • Deliver the lender information if a lender exists but is not the client. (Figure 2 - 4)

Figure 2 - 4

Text, timeline

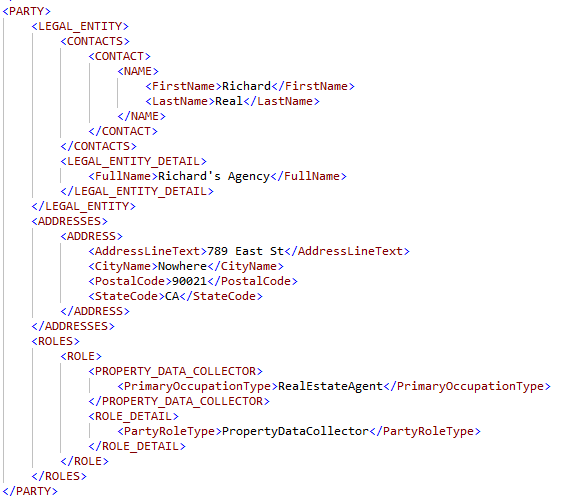

  • Deliver the property data collector information if a property data report is used. (Figure 2 - 5)

Figure 2 - 5

Timeline

Graphical user interface

Assignment Information: Contact Information - [Role]/[Role] - Non-Clients

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
When PartyRoleType (UID: 2400.0300, FID: 2.010) = "Lender" or "Management Company"…
2.012 Company Name 2400.0295 FullName … displays
2.013 Company Address 2400.0296 AddressLineText … displays
2400.0297 CityName … displays
2400.0299 StateCode … displays
2400.0298 PostalCode … displays
Credentials If LicenseIdentifier, LicenseIssuingAuthorityStateCode, and LicenseExpirationDate are not provided, do not display report label.
2.014 ID 2400.0397 LicenseIdentifier Display when provided for PartyRoleType (UID: 2400.0300, FID: 2.010) = "ManagementCompany". If not provided, do not display report label.
2.015 State 2400.0398 LicenseIssuingAuthorityStateCode Display when provided for PartyRoleType (UID: 2400.0300, FID: 2.010) = "ManagementCompany". If not provided, do not display report label.
2.016 Expires 2400.0396 LicenseExpirationDate Display when provided for PartyRoleType (UID: 2400.0300, FID: 2.010) = "ManagementCompany". If not provided, do not display report label.

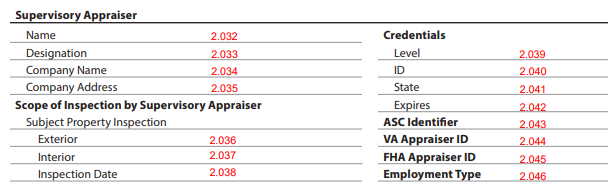

Appraiser and Supervisory Appraiser#

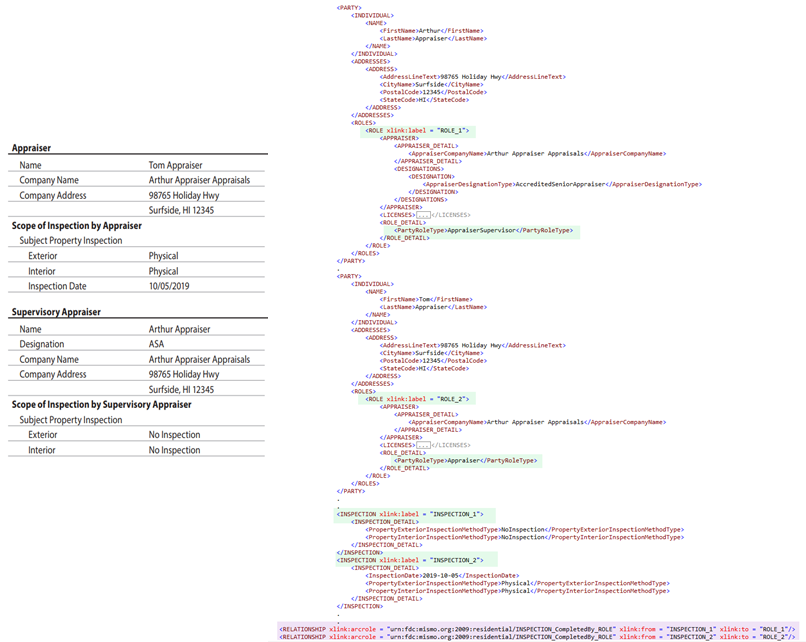

This portion of Contact Information shows details about the Appraiser and Supervisory Appraiser (if any).

  • The Appraiser displays first, followed by the Supervisory Appraiser (if any).
  • Although the report is very similar for appraisers and supervisors, the datapoints are different, and therefore they are split out in this document.

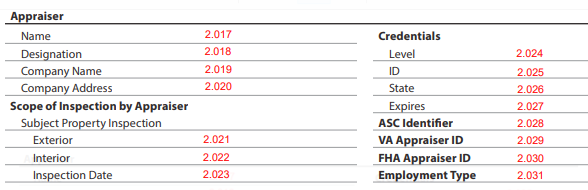

Appraiser#

Information about the Appraiser displays based on PartyRoleType (UID: 2400.0056, FID: Not on report) = "Appraiser", and always displays.

Table

Assignment Information: Contact Information - Appraiser

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
2.017 Name 2400.0041 FirstName Always displays
2400.0043 MiddleName Display when provided
2400.0042 LastName Always displays
2400.0044 SuffixName Display when provided
2.018 Designation 2400.0049 AppraiserDesignationType Display when provided
If there are multiple designations, display separated with a comma
2.019 Company Name 2400.0047 AppraiserCompanyName Always displays
2.020 Company Address 2400.0033 AddressLineText Always displays
2400.0034 CityName Always displays
2400.0036 StateCode Always displays
2400.0035 PostalCode Always displays
Scope of Inspection by Appraiser Always displays
Subject Property Inspection
2.021 Exterior 2400.0081 PropertyExteriorInspectionMethodType Always displays
2.022 Interior 2400.0082 PropertyInteriorInspectionMethodType Always displays
2.023 Inspection Date 2400.0080 InspectionDate Display when provided.
When not provided, do not display report label.
Credentials Always displays
2.024 Level 2400.0051 AppraiserLicenseType Always displays
2.025 ID 2400.0054 LicenseIdentifier Required when AppraiserLicenseType <> "None"
When not provided, do not display report label.
2.026 State 2400.0055 LicenseIssuingAuthorityStateCode Required when AppraiserLicenseType <> "None"
When not provided, do not display report label.
2.027 Expires 2400.0053 LicenseExpirationDate Required when AppraiserLicenseType <> "None"
When not provided, do not display report label
2.028 ASC Identifier 2400.0048 AppraisalSubCommitteeAppraiserIdentifier Display when provided.
When not provided, do not display report label.
2.029 VA Appraiser ID 2400.0256
2400.0258
AgencyAppraiserIdentifierType
AgencyAppraiserIdentifier
Display when GovernmentAgencyAppraisalType "VA"
2.030 FHA Appraiser ID 2400.0256
2400.0258
AgencyAppraiserIdentifierType
AgencyAppraiserIdentifier
Display when GovernmentAgencyAppraisalType "FHA"
2.031 Employment Type 1000.0006 AppraiserEmploymentType Display when GovernmentAgencyAppraisalType "VA"

Supervisory Appraiser#

Information about the Supervisory Appraiser displays based on PartyRoleType (UID: 2200.0085, FID: Not on report) = "AppraiserSupervisor". If there is no Supervisory Appraiser, the subsection does not display.

A picture containing graphical user interface

Assignment Information: Contact Information - Supervisory Appraiser

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
When PartyRoleType (UID: 2200.0085, FID: Not on report) = "AppraiserSupervisor" …
2.032 Name 2200.0075 FirstName … displays
2200.0077 MiddleName Display when provided
2200.0076 LastName … displays
2200.0078 SuffixName Display when provided
2.033 Designation 2400.0432 AppraiserDesignationType Display when provided
If there are multiple designations, display separated with a comma.
2.034 Company Name 2400.0428 AppraiserCompanyName … displays
2.035 Company Address 2400.0423 AddressLineText … displays
2400.0424 CityName … displays
2400.0426 StateCode … displays
2400.0425 PostalCode … displays
Scope of Inspection by Supervisory Appraiser … displays
Subject Property Inspection
2.036 Exterior 2400.0503 PropertyExteriorInspectionMethodType … displays
2.037 Interior 2400.0504 PropertyInteriorInspectionMethodType … displays
2.038 Inspection Date 2400.0502 InspectionDate Display when provided.
When not provided, do not display report label.
Credentials … displays
2.039 Level 2200.0080 AppraiserLicenseType … displays
2.040 ID 2200.0083 LicenseIdentifier …displays
2.041 State 2200.0084 LicenseIssuingAuthorityStateCode … displays
2.042 Expires 2200.0082 LicenseExpirationDate … displays
2.043 ASC Identifier 2400.0427 AppraisalSubCommitteeAppraiserIdentifier Display when provided.
When not provided, do not display report label.
2.044
2.045
VA Appraiser ID
FHA Appraiser ID
2400.0431
2400.0430
AgencyAppraiserIdentifierType
AgencyAppraiserIdentifier
Display "FHA Appraiser ID" when GovernmentAgencyAppraisalType "FHA"
Display "VA Appraiser ID" when GovernmentAgencyAppraisalType "VA":
2.046 Employment Type 2400.0429 AppraiserEmploymentType Display when (GovernmentAgencyAppraisalType (UID: 1000.0029 FID: 2.008) = "VA"
Always displays report label when GovernmentAgencyAppraisalType = "VA"

See Assignment - Arcrole Relationship section for an example, with an appraiser and a supervisory appraiser.

Significant Real Property Appraisal Assistance#

The Significant Real Property Appraisal Assistance subsection displays when there are one or more contacts with PartyRoleType (UID: 2400.0412, FID: Not on report) = "SignificantRealPropertyAppraisalAssistance".

  • If there are multiple contacts who provided significant real property appraisal assistance, the subsection repeats for each one.
  • If there are no contacts who provided significant real property appraisal assistance, the subsection does not display.

Notes:

  • To easily find data points in the UAD Specification, search for "Significant Real Property Appraisal Assistance" under the "Additional Context" column.
  • Significant Real Property Appraisal Assistance also drives the display of the following in the Certifications and Scope of Work section.
    • Which version of 28.041 is displayed depends on whether or not there is significant real property appraisal assistance.
    • Name (2.047) also displays in 28.042.

Graphical user interface, text, application, email

Assignment Information: Contact Information - Significant Real Property Appraisal Assistance

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
When PartyRoleType (UID: 2400.0412, FID: Not on report) = "SignificantRealPropertyAppraisalAssistance" …
2.047 Name 2400.0405 FirstName … displays
2400.0407 MiddleName Display when provided
2400.0406 LastName … displays
2400.0408 SuffixName Display when provided
Credentials
2.049 Level 2400.0488 AppraiserLicenseType … displays
2.050 ID 2400.0410 LicenseIdentifier Display when AppraiserLicenseType <> "None"
If not provided, do not display report label.
2.051 State 2400.0411 LicenseIssuingAuthorityStateCode Display when AppraiserLicenseType <> "None"
If not provided, do not display report label.
2.052 Expires 2400.0409 LicenseExpirationDate Display when AppraiserLicenseType <> "None"
If not provided, do not display report label.
2.048 Description 2400.0413 PartyRoleTypeAdditionalDescription … displays

Property Data Report#

The Property Data Report subsection displays when PropertyDataReportIndicator (UID: 1000.0043, FID: 2.005) = "true".

Notes:

  • If PropertyDataReportIndicator (UID: 1000.0043, FID: 2.005) = "true", there must be a contact with PartyRoleType (UID: 2400.0300, FID: Not on report) = "PropertyDataCollector", as the Property Data Collector is the person who completed the Property Data Report.
  • Inspection information for this subsection uses containment instead of an arcrole.

A picture containing table

Assignment Information: Contact Information - Property Data Report

Report Field ID Report Label Unique ID MISMO Data Point Name Display Rules
When PartyRoleType (UID: 2400.0300, FID: Not on report) = "PropertyDataCollector" and PropertyDataIdentifier UID: 1000.0043, UID: 2.005) = "true" …
2.053 Name 1000.0186 FirstName Display when provided
1000.0188 MiddleName Display when provided
1000.0187 LastName Display when provided
1000.0189 SuffixName Display when provided
2.054 Occupation 1000.0195 PrimaryOccupationType … displays
2.055 Company Name 1000.0190 FullName … displays
2.056 Company Address 1000.0191 AddressLineText … displays
1000.0192 CityName … displays
1000.0194 StateCode … displays
1000.0193 PostalCode … displays
2.057 Reference ID 2400.0088 InspectorFileIdentifier Display when provided
Subject Property Inspection … displays
2.058 Exterior 1000.0132 PropertyExteriorInspectionMethodType … displays
2.059 Interior 1000.0133 PropertyInteriorInspectionMethodType … displays
2.060 Inspection Date 1000.0119 InspectionDate … displays

Property Data Collector#

Timeline

Assignment Information and Scope of Work Commentary#

URAR form snippet

The Assignment Information and Scope of Work Commentary subsection displays only when comments are provided. Any commentary must use ValuationCommentText (UID: 0100.0044, FID: 2.061) and ValuationAnalysisCategoryType (UID: 0100.0045, FID: 2.061) = "Assignment".

Assignment Information Exhibits#

URAR form snippet

The Assignment Information Exhibits subsection displays when images are provided. All text displays above the image in bold font.

  • Any images included must be delivered using ImageCategoryType (UID: 1400.0638, FID: 2.062.1) = "AssignmentExhibit".
  • If provided, an image caption is included using ImageCaptionCommentDescription (UID: 1400.0640, FID: 2.062.2).

Assignment - Arcrole Relationships#

Arcrole relationships, establishes "relationships" or linkages in the XML data file that may be visually obvious on the URAR Report. In the XML data, specific instances of data points or containers must be connected to properly represent the information.

  • Containers or datapoints to be linked are identified using "xlink:label."
  • The RELATIONSHIP container holds the xlink:arcrole, xlink:from, and xlink:to attributes that describe the data relationships.

INSPECTION to ROLE Appraiser/AppraiserSupervisor Performing the Subject Property Inspection.#

Provide one RELATIONSHIP container for each appraiser-related role (provided in the data set) joining the INSPECTION container to the PARTY container.

Appraiser Role#
Unique ID Parent Container MISMO Attribute Name Supported Attribute Enumerations
1400.0348 RELATIONSHIP @xlink:arcrole urn:fdc:mismo.org:2009:residential/INSPECTION_CompletedBy_ROLE
1400.0349 RELATIONSHIP @xlink:from INSPECTION_n
1400.0350 RELATIONSHIP @xlink:to ROLE_n
2400.0286 INSPECTION @xlink:label INSPECTION_n
2400.0045 ROLE @xlink:label ROLE_n
Appraiser Supervisor Role#
Unique ID Parent Container MISMO Attribute Name Supported Attribute Enumerations
2400.0492 RELATIONSHIP @xlink:arcrole urn:fdc:mismo.org:2009:residential/INSPECTION_CompletedBy_ROLE
2400.0493 RELATIONSHIP @xlink:from INSPECTION_n
2400.0494 RELATIONSHIP @xlink:to ROLE_n
2400.0501 INSPECTION @xlink:label INSPECTION_n
2200.0079 ROLE @xlink:label ROLE_n

In this example, an appraiser and a supervisory appraiser are represented in the XML and displayed on the report.

Table

Refer to the Arcrole/Data Relationships section in the MISMO XML Version 3.6 chapter for additional information.
