Outbuilding

The Outbuilding section provides information about additional structures on the site, other than the main residence(s). Examples include standalone ADUs, barns, and pool houses. Outbuilding characteristics determine the amount of additional information reported.

This section provides space for additional commentary, exhibits, and any apparent defects, damages, or deficiencies.

The Outbuilding section displays when ImprovementType (UID: 0300.0009, FID: Not on report) = "Outbuilding". The subsection repeats for each outbuilding. The information that displays in the Outbuilding section varies depending on whether the outbuilding is real property and whether it contains an ADU. When an outbuilding is not considered real property, an abbreviated version of the outbuilding section displays. (Figure 12 - 3)

Display all outbuildings that are real property followed by any that are not real property.

Section header (black tab)#

The section header (black tab) displays as "Outbuilding - [OutbuildingType]"

• When ImprovementType (UID: 0300.0009, FID: Not on report) = "Outbuilding"
  • OutbuildingType (UID: 0300.0025, FID: 12.001) in the section header (black tab). (Figure 12 - 1)

Figure 12 - 1

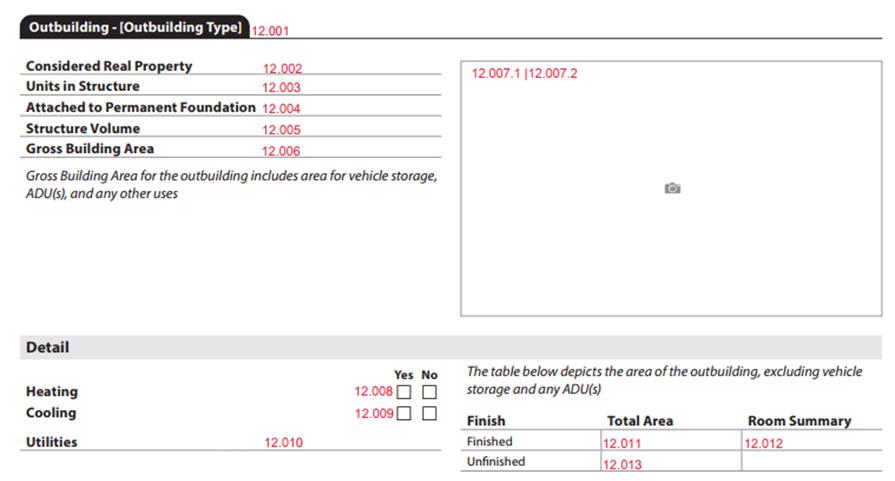

Outbuilding - General Information#

An image must be provided for each outbuilding, with ImageCategoryType (UID: 1400.0640, FID: 12.007.1) = "OutbuildingExhibit" and ImageCaptionCommentDescription (UID: 1400.0638, FID: 12.007.2). Display image on the right side without caption and the image would not display in the Outbuilding Exhibits subsection.

For each outbuilding, additional information is necessary.

When ImprovementType = "Outbuilding" and Considered Real Property - OutbuildingRealPropertyIndicator (UID: 0300.0024, FID: 12.002) = "true"

• Considered Real Property - OutbuildingRealPropertyIndicator (UID: 0300.0024, FID: 12.002)
• Units in Structure - LivingUnitCount (UID: 0300.0063, FID: 12.003) displays.
  • Deliver as zero if there are no living units in the outbuilding.
• Structure Volume - StructureVolumeMeasure (UID: 0300.0073, FID: 12.005) display when provided.
• Gross Building Area - StructureAreaMeasure (UID: 0300.0060, FID: 12.006) displays, and the text "Gross Building Area for the outbuilding includes area for vehicle storage, ADU(s), and any other uses" displays below the field. (Figure 12 - 2)

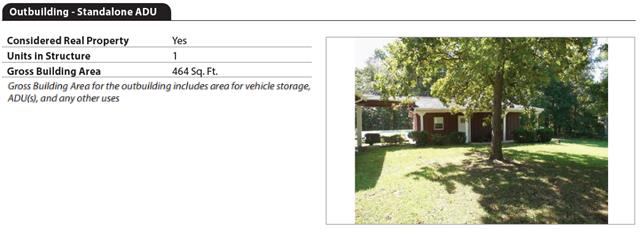

Figure 12 - 2

Abbreviated Version of Outbuilding#

When ImprovementType = "Outbuilding" and Considered Real Property - OutbuildingRealPropertyIndicator (UID: 0300.0024, FID: 12.002) = "false"

• The following do not display:
  • Units in Structure, Structure Volume, Gross Building Area do not display
  • Descriptive text "Gross Building Area for the outbuilding includes area for vehicle storage, ADU(s), and any other uses" does not display
  • Detail, Mechanical System Details, and Apparent Defects, Damages, Deficiencies subsections do not display. (Figure 12 - 3)
• The following do display:
  • Considered Real Property - OutbuildingRealPropertyIndicator (UID: 0300.0024, FID: 12.002)
  • Attached to Permanent Foundation - ManufacturedHomeAttachedToFoundationIndicator (UID: 0500.0007, FID: 12.004)

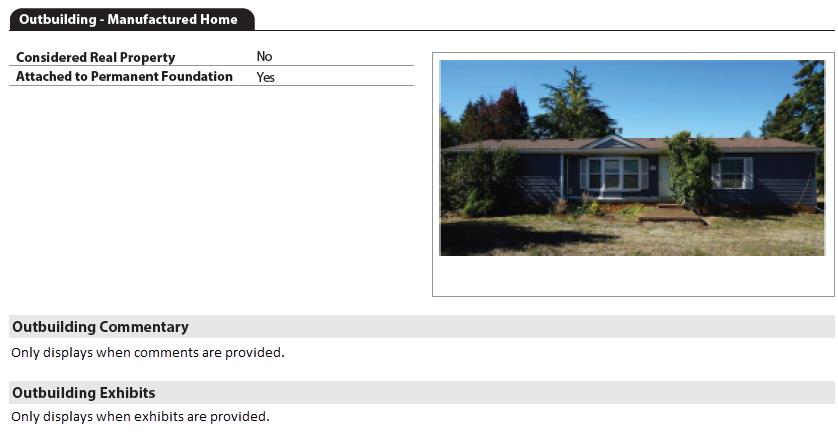

Figure 12 - 3

Detail#

The Detail subsection displays when Considered Real Property - OutbuildingRealPropertyIndicator (UID: 0300.0024, FID: 12.002) = "true", and additional information displays.

• When Units in Structure - LivingUnitCount (UID: 0300.0063, FID: 12.003) = 0, (Figure 12 - 4)

  • Heating - HeatingSystemExistsIndicator (UID: 0300.0023, FID: 12.008) checkbox displays.
  • Cooling - CoolingSystemExistsIndicator (UID: 0300.0022, FID: 12.009) checkbox displays.

• Utilities - UtilityType (UID: 0300.0028, FID: 12.010) must display.

  • When None, no other enumerated values should be delivered.
  • For multiple utilities, display alphabetically with each on a new row. (Figure 12 - 5)

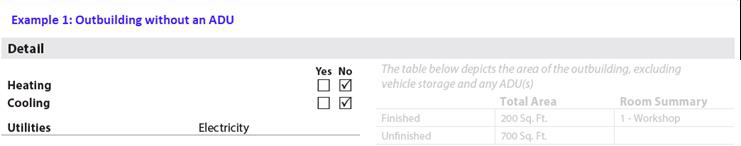

Figure 12 - 4

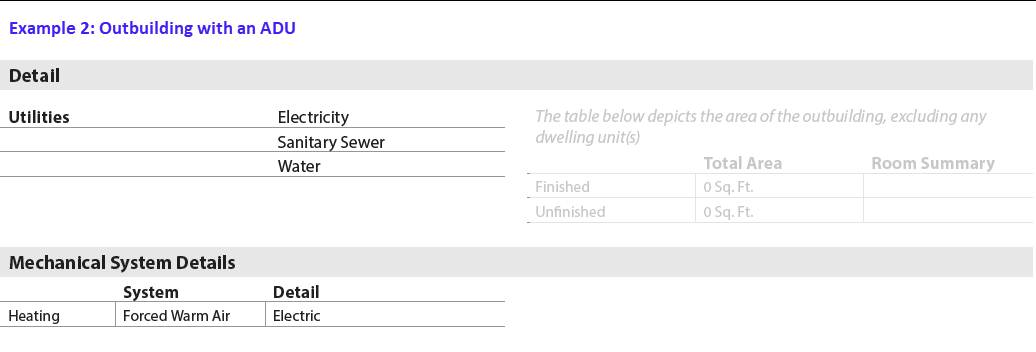

Figure 12 - 5

• Finished (Figure 12 - 6)

  • Display the text, "The table below depicts the area of the outbuilding, excluding vehicle storage and any ADU(s)", when OutbuildingRealPropertyIndicator (UID: 0300.0024, FID: 12.002) = "true".

• Total Area - StructureExcludingVehicleStorageAndADUFinishedAreaMeasure (UID: 0300.0112, FID: 12.011) must display, even if zero.

• Room Summary ▪ TotalRoomCount (UID: 0300.0020, FID: 12.012) ▪ RoomType (UID: 0300.0018, FID: 12.012) ▪ Display the number followed by a dash, then the display value for the room type. ▪ If there are multiple, display as stacked in the same cell.

• Unfinished (Figure 12 - 6)

• Total Area - StructureExcludingVehicleStorageAndADUUnfinishedAreaMeasure (UID: 0300.0113, FID: 12.013) must display, even if zero.

• Room Summary - Room detail is not collected or displayed for unfinished space.

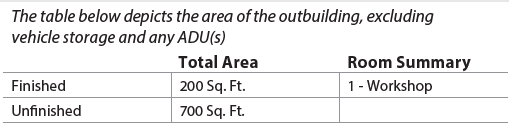

Figure 12 - 6

Mechanical System Details#

The Mechanical System Details subsection displays when the outbuilding contains an ADU, Units in Structure - LivingUnitCount (UID: 0300.0063, FID: 12.003) >= 1.

Heating

• System - HeatingSystemType (UID: 0300.0088, FID: 12.014) If there are multiple, display as stacked in a new row.
  • When HeatingSystemType <> None, Detail - HeatingFuelType (UID: 0300.0086, FID: 12.015) must be provided for each heating system type. (Figure 12 - 7)
  • When HeatingSystemType = "None", ▪ Detail - LackOfHeatingSystemTypicalToMarketIndicator (UID: 0300.0083, FID: 12.015) is required.
    • When true, display "Typical for Market"
    • When false, display "Not Typical for Market"

Cooling#

• System - CoolingSystemType (UID: 0300.0084, FID: 12.016) always displays. If there are multiple, display as stacked in a new row.
  • Cooling - CoolingSystemExistsIndicator (UID: 0300.0022, FID: 12.009) ▪ When true, display cooling system type ▪ When false, display "None"

Other Mechanical Systems#

• Other Mechanical Systems - MechanicalSystemType (UID: 0300.0090, FID: 12.017) displays when provided. If there are multiple, display as stacked.
  • When there are no other mechanical systems, Other Mechanical Systems does not display.

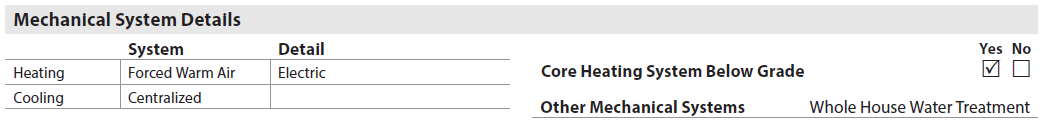

Figure 12 - 7

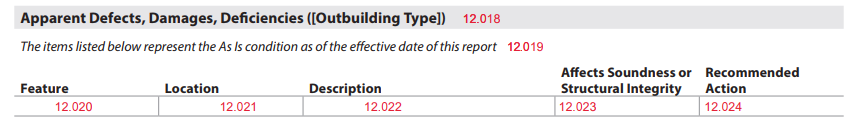

Apparent Defects, Damages, Deficiencies ([Outbuilding Type])#

The Apparent Defects, Damages, Deficiencies ([OutbuildingType]) subsection header displays in the gray bar.

OutbuildingDefectsExistIndicator (UID: 0300.0111, FID: 12.019)

• When false, display "None" (Figure 12 - 8)
• When true, display static text in italics (FID: 12.019) "The items listed below represent the As Is condition as of the effective date of this report" and the following data is required (Figure 12 - 9):
• Feature - DefectComponentLabelType (UID: 3900.0164, FID: 12.020) ▪ Display each feature on a separate row. ▪ When the same feature has multiple defects, repeat the entire row.
• Location - DefectItemLocationType (UID: 3900.0169, FID: 12.021)
• Description - DefectItemDescription (UID: 3900.0167, FID: 12.022)
• Affects Soundness or Structural Integrity - DefectItemAffectsSoundnessStructuralIntegrityIndicator (UID: 3900.0166, FID: 12.023)

Recommended Action - DefectItemRecommendedActionType (UID: 3900.0128, FID: 12.024)

Figure 12 - 8

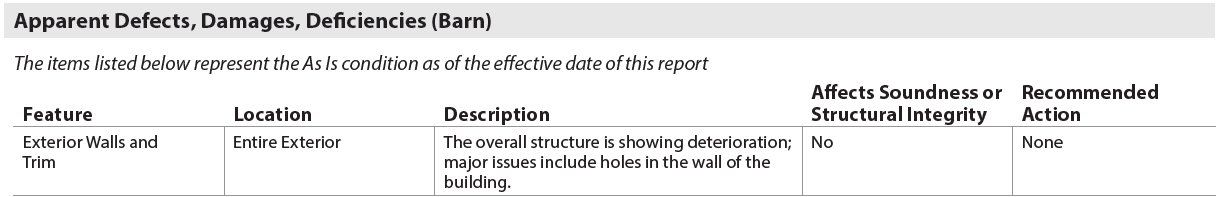

Figure 12 - 9

Outbuilding Commentary#

The Outbuilding Commentary subsection displays only when comments are provided. Any commentary must use StructureValuationCommentText (UID: 0300.0096, FID: 12.026).

Outbuilding Exhibits#

The Outbuilding Exhibits subsection displays only when images are provided. All text displays above the image in bold font.

Apparent Defects, Damages, Deficiencies#

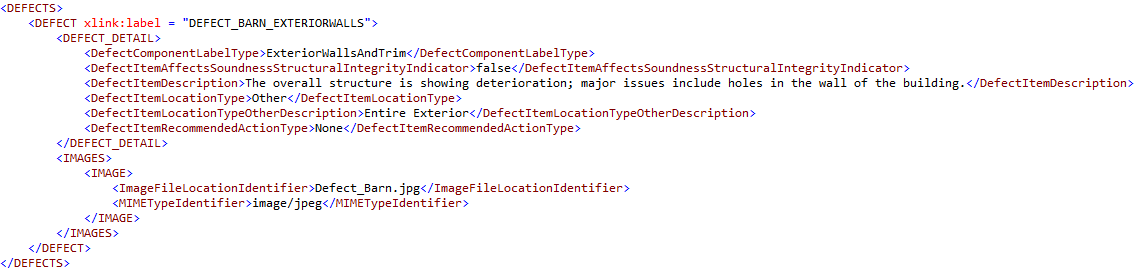

• Images provided for Apparent Defects, Damages, Deficiencies (Outbuilding) are delivered in the IMAGE container located in the instance of the DEFECT container that represent the given defect.
• The text "Apparent Defects, Damages, Deficiencies -" precedes the Feature - DefectComponentLabelType (UID: 3900.0164, FID: 12.020.1). (Figure 12 - 9 and Figure 12 - 10)
• An additional caption may be provided using ImageCaptionCommentDescription (UID: 3900.0173, FID: 12.020.2) and displays above the image following the DefectComponentLabelType.

Figure 12 - 10

Additional Exhibits#

• Additional images included must be delivered using ImageCategoryType (UID: 1400.0638, FID: 12.026.1) = "OutbuildingExhibit".
• An image caption should be included using ImageCaptionCommentDescription (UID: 1400.0640, FID: 12.026.2).

Outbuilding - Arcrole Relationships#

Arcrole relationships establish "relationships" or linkages in the XML data file that may be visually obvious on the URAR Report. In the XML data specific instances of data points or containers must be connected to properly represent the information.

• Containers or datapoints to be linked are identified using "xlink:label."
• The RELATIONSHIP container holds the xlink:arcrole, xlink:from, and xlink:to attributes that describe the data relationships.

DEFECT to IMPROVEMENT#

Deliver RELATIONSHIP to associate the defect to the applicable instance of IMPROVEMENT where the ImprovementType = "Outbuilding". One RELATIONSHIP container is required for each defect identified on the exterior of the dwelling.

Refer to the section Arcrole/Data Relationships in the MISMO XML Version 3.6 chapter for additional information.
