Section 09
Manufactured Home
Appendix B-1, page 181
The Manufactured Home section displays details about the structure, provides space for additional commentary, and exhibits. This section repeats for each manufactured home on the property that is either a dwelling or an ADU.
- When the manufactured home is an outbuilding that is not an ADU, it displays in the Outbuilding section (instead of Manufactured Home) e.g., a manufactured home that has been physically modified and is no longer livable.
The Manufactured Home section repeats for each manufactured home on the property that is either a dwelling or an ADU. If there are no manufactured homes on the property, the section does not display.
- When a manufactured home is a Dwelling; ConstructionMethodType (UID: 0300.0034) = "Manufactured" and ImprovementType (UID: 0300.0009) = "Dwelling", the Manufactured Home section displays after the applicable Dwelling Exterior section.
- When the manufactured home is an ADU; OutbuildingType (UID: 0300.0025) = "ManufacturedHome" AND LivingUnitCount (UID: 0300.0063) > 0, the Manufactured Home section displays after the applicable Outbuilding section.
The following table breaks down the display rules for the two variations of manufactured homes: Dwelling or Outbuilding/ADU. When the manufactured home is an Outbuilding/ADU, a subset of information is displayed.

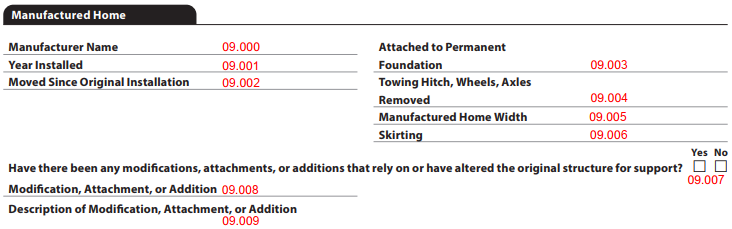

Manufactured Home
| Display Rules | |||||
|---|---|---|---|---|---|
| Dwelling | Outbuilding/ADU | ||||
| Report Field ID | Report Label | Unique ID | MISMO Data Point Name | Display when ImprovementType (UID: 0300.0009) = "Dwelling" and ConstructionMethodType (UID: 0300.0034) = "Manufactured" | Display when (ImprovementType (UID: 0300.0009) = "Outbuilding" AND OutbuildingType (UID: 0300.0025) = "ManufacturedHome" AND LivingUnitCount (UID: 0300.0063) > 0) |
| 9.000 | Manufacturer Name | 0500.0017 | ManufacturedHomeManufacturerName | Always display | NA |
| 9.001 | Year Installed | 0500.0011 | ManufacturedHomeInstalledDate | Always display | NA |
| 0500.0041 | ManufacturedHomeInstalledDateEstimatedIndicator | When "true", display (~) in front of the ManufacturedHomeInstalledDate to indicate it is an estimated value. | NA | ||
| 9.002 | Moved Since Original Installation | 0500.0021 | ManufacturedHomeMovedAfterOriginalInstallationIndicator | Always display | NA |
| 9.003 | Attached to Permanent Foundation | 0500.0007 | ManufacturedHomeAttachedToFoundationIndicator | Always display | Always display |
| 9.004 | Towing Hitch, Wheels, Axles Removed | 0500.0008 | ManufacturedHomeHitchWheelsAxlesRemovedIndicator | Always display | Always display |
| 9.005 | Manufactured Home Width | 0500.0044 | ManufacturedHomeWidthType | Always display | NA |
| 9.006 | Skirting | 0500.0030 | SkirtingExistsIndicator | When "true" do not display (display skirting material instead) | NA |
| 0500.0039 | SkirtingMaterialType | Display when SkirtingExistsIndicator = "true" If there are multiple, display as stacked. |
NA | ||
| 9.007 | Have there been any modifications, attachments, or additions that rely on or have altered the original structure for support? | 0500.0020 | ManufacturedHomeModificationIndicator | Checkbox always displays | Checkbox always displays |
| 9.008 | Modification, Attachment, or Addition | 0500.0035 | ManufacturedHomeModificationType | Display when ManufacturedHomeModificationIndicator = "true". If there are multiple, display as stacked. | Display when ManufacturedHomeModificationIndicator = "true". If there are multiple, display as stacked. |
| 9.009 | Description of Modification, Attachment, or Addition | 0500.0019 | ManufacturedHomeModificationsDescription | Display when ManufacturedHomeModificationIndicator = "true" | Display when ManufacturedHomeModificationIndicator = "true" |
| HUD Data Plate | Subsection always displays. | ||||
| 9.010 | HUD Data Plate Attached | 0500.0010 | ManufacturedHomeHUDDataPlateAttachedIndicator | Always display | Always display |
| 9.011 | Date of Manufacture | 0500.0016 | ManufacturedHomeManufactureDate | Display when Exists. | NA |
| 9.012 | Serial Number | 0500.0027 | ManufacturedHomeSerialNumberIdentifier | Display when ManufacturedHomeHUDDataPlateAttachedIndicator = "true" OR (when ManufacturedHomeHUDDataPlateAttachedIndicator = "false" AND Exists) | Display when ManufacturedHomeHUDDataPlateAttachedIndicator = "true" OR (when ManufacturedHomeHUDDataPlateAttachedIndicator = "false" AND Exists) |
| 9.013 | HUD Wind Zone | 0500.0033 | WindZoneCode | Display when ManufacturedHomeHUDDataPlateAttachedIndicator = "true" OR (when ManufacturedHomeHUDDataPlateAttachedIndicator = "false" AND Exists) | NA |
| 9.014 | HUD Thermal Zone | 0500.0031 | ThermalZoneCode | Display when ManufacturedHomeHUDDataPlateAttachedIndicator = "true" OR (when ManufacturedHomeHUDDataPlateAttachedIndicator = "false" AND Exists) | NA |
| 9.015 | HUD Roof Load Zone | 0500.0028 | RoofLoadZoneCode | Display when ManufacturedHomeHUDDataPlateAttachedIndicator = "true" OR (when ManufacturedHomeHUDDataPlateAttachedIndicator = "false" AND Exists) | NA |
| HUD Certification Label | Subsection always displays. | ||||
| 9.016 | Label Present for All Sections | 0500.0009 | ManufacturedHomeHUDCertificateLabelIndicator | Always display | Always display |
| 9.017 | HUD Certification Number | 0500.0037 | ManufacturedHomeHUDCertificationLabelIdentifier | Display when ManufacturedHomeHUDCertificateLabelIndicator = "true" OR (when ManufacturedHomeHUDCertificateLabelIndicator = "false" AND Exists) | Display when ManufacturedHomeHUDCertificateLabelIndicator = "true" OR (when ManufacturedHomeHUDCertificateLabelIndicator = "false" AND Exists) |
| Manufactured Home Certification Program (Figure 9 - 1) | Display subsection when ManufacturedHomeFinancingProgramEligibilityType is not null | NA | |||
| 9.018 | Certification | 0500.0005 | ManufacturedHomeFinancingProgramEligibilityType | Display when Exists | NA |
| 9.019 | Identifier | 0500.0004 | ManufacturedHomeFinancingProgramEligibilityIdentifier | Display when ManufacturedHomeFinancingProgramEligibilityType Exists | NA |
| Invoice Information | Subsection displays when NewConstructionIndicator = "true" | NA | |||
| 9.020 | Purchased from Retailer | 0500.0022 | ManufacturedHomePurchasedFromRetailerIndicator | Display when NewConstructionIndicator = "true" | NA |
| 9.021 | Retailer Name | 0500.0025 | ManufacturedHomeRetailerName | Display when ManufacturedHomePurchasedFromRetailerIndicator = "true" | NA |
| 9.022 | Retailer's Invoice Reviewed | 0500.0023 | ManufacturedHomeRetailerInvoiceReviewedIndicator | Display when ManufacturedHomePurchasedFromRetailerIndicator = "true" | NA |
| 9.023 | Manufacturer's Invoice Reviewed | 0500.0014 | ManufacturedHomeInvoiceReviewedIndicator | Display when NewConstructionIndicator = "true" | NA |
| 9.024 | Invoice(s) Appear Reasonable | 0500.0013 | ManufacturedHomeInvoiceReasonableIndicator | Display when (ManufacturedHomeRetailerInvoiceReviewedIndicator = "true" OR ManufacturedHomeInvoiceReviewedIndicator = "true") | NA |
| 9.025 | Commentary on Why Invoice(s) Not Reasonable | 0500.0012 | ManufacturedHomeInvoiceNotReasonableDescription | Display when ManufacturedHomeInvoiceReasonableIndicator = "false" | NA |
| Manufactured Home Commentary | Do not display subsection when no comment is provided. | ||||
| 9.026 | 0500.0042 | ManufacturedHomeValuationCommentText | Display when Exists. | Display when Exists. |

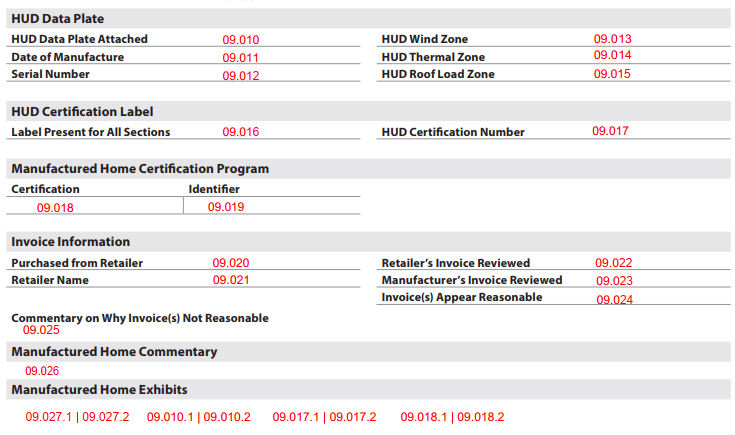

Figure 9 - 1
Manufactured Home Exhibits#
The Manufactured Home Exhibits subsection displays when images are provided. All text must display above each image in bold font.
The Manufactured Home Exhibits subsection contains images to support the following :
- HUD Data Plate - Display "HUD Data Plate" with caption, if provided.
ImageCategoryType (UID: 1400.0975, FID: 9.010.1) = "ManufacturedHomeHUDDataPlate"
ImageCaptionCommentDescription (UID: 1400.0974, FID: 9.010.2)
- HUD Certification Number - An image of all HUD Certification labels must be provided. Display each image with the text "HUD Certification Label" with caption, if provided.
ImageCategoryType (UID: 1400.0967, FID: 9.017.1) = "ManufacturedHomeHUDCertificationLabel"
ImageCaptionCommentDescription (UID: 1400.0966, FID: 9.017.2)
- Manufactured Home Certification Program - Display "Manufactured Home Certification" with caption, if provided.
ImageCategoryType (UID: 1400.0959, FID: 9.018.1) = "ManufacturedHomeFinancingProgramEligibilityCertification"
ImageCaptionCommentDescription (UID: 1400.0958, FID: 9.018.2)
Additional images should be delivered with:
- ImageCategoryType (UID: 1400.0638, FID: 9.027.1) = "ManufacturedHomeExhibits".
- An image caption should be included using ImageCaptionCommentDescription (UID: 1400.0640, FID: 9.027.2) display caption if provided.
